高速4网口 专为运营商
4千兆网口，有线&无线都兼容
扁平PCB天线，信号稳穿3堵墙
简单管理，高效运维
强大VPN支持，安全无忧
全球覆盖，灵活部署
|
技术参数 |
|
|
型号 |
XMC2843 |
|
芯片方案 |
ASR1828 |
|
频段 |
XMC2843-EU: l FDD LTE: B1/B3/B5/B7/B8/B20/B28 l TDD LTE: B38/B40/B41/B42/B43 l UMTS: B1/B5/B8 |
|
协议版本 |
4G: 3GPP R10 Cat6 + 3G: 3GPP R8 |
|
传输速率 |
FDD: Downlink/Uplink up to 300Mbps/50Mbps TDD: Downlink/Uplink up to 220Mbps/30Mbps DL/UL up to 42Mbps/5.76Mbps |
|
WiFi芯片 |
RTL8192FR+RTL8812FR |
|
WiFi频段 |
2.4GHz/5GHz |
|
发射功率 |
l LTE: Power Class 3 (23 dBm ±2 dB) l UMTS: Power Class 3 (23 dBm ±2 dB) |
|
接收灵敏度 |
l <-76dBm at the antenna port,QPSK,11Mbps, 1024 Byte PSDU @ 802.11b l <-65dBm at the antenna port,64QAM,54Mbps, 1024 Byte PSDU @ 802.11g l -64dBm at the antenna port,64QAM,65Mbps, 4096 Byte PSDU @ 802.11n(HT20) l <-61dBm at the antenna port,64QAM,135Mbps, 4096 Byte PSDU@ 802.11n(HT40) l <-55dBm at the antenna port,256QAM,135Mbps, 4096 Byte PSDU@ 802.11ac(HT80) |
|
WiFi天线 |
2.4GHz External, 2 x 2 MIMO 5GHz Internal ,2×2 MIMO |
|
WiFi协议 |
802.11a/b/g/n/ac, 20MHz/40MHz/80MHz |
|
WiFi速率 |
802.11b: Up to 11 Mbps 802.11g: Up to 54 Mbps 802.11n: Up to 300 Mbps 802.11ac: Up to 866.7 Mbps |
|
尺寸 |
150mm×105mm×30mm(L×W×H) |
|
重量 |
About 233g |
|
电源 |
DC 12V,1A |
|
接口 |

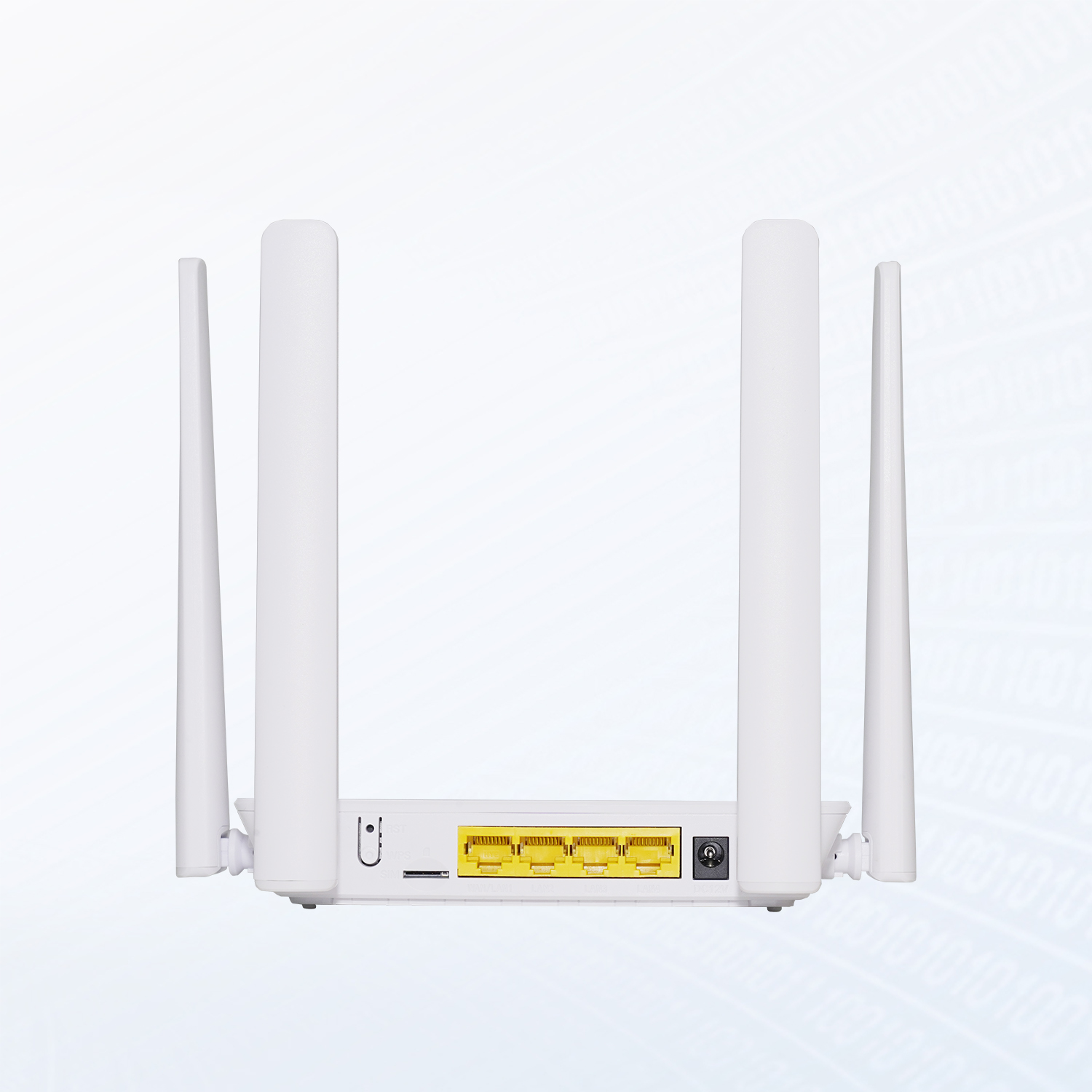

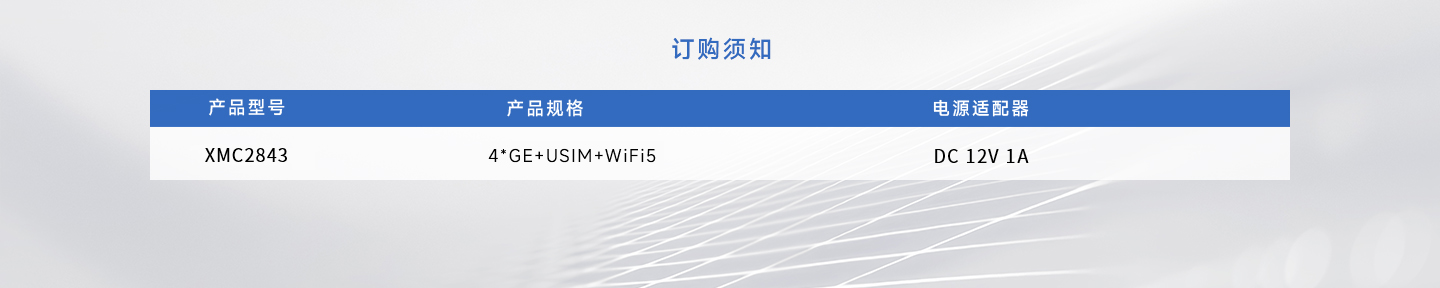

4*GE+USIM+WiFi 5 |
|
指示灯 |

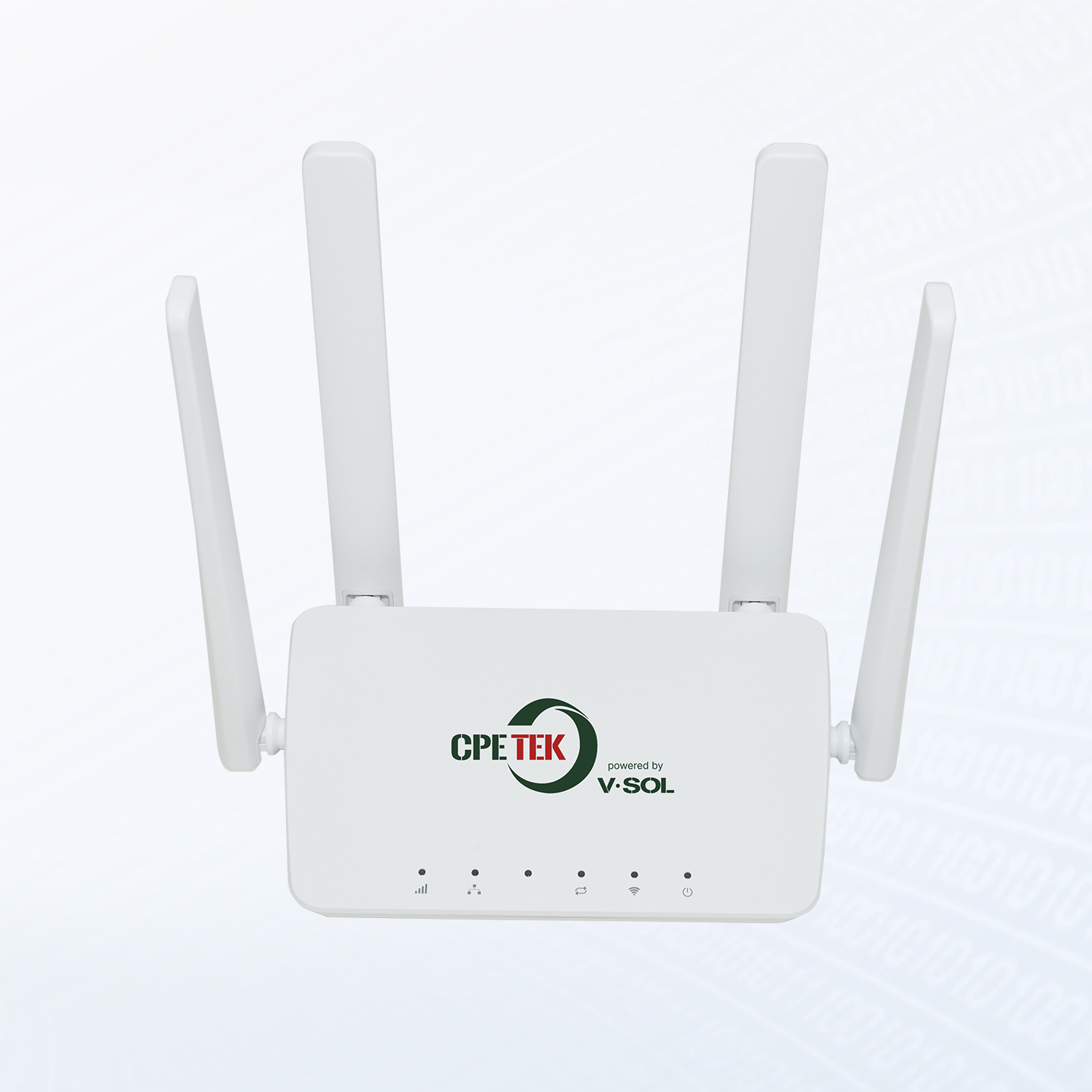

POWER, WiFi, WAN/LAN, DATA , LTE |
|
按钮 |
Reset/WPS Key |
|
特色功能 |
WebUI, TR069 remote management and FOTA support |
